3D POROUS COPPER
- The 3D porous copper features a fully open cell structure with numerous interconnected pores evenly distributed throughout the base copper material.

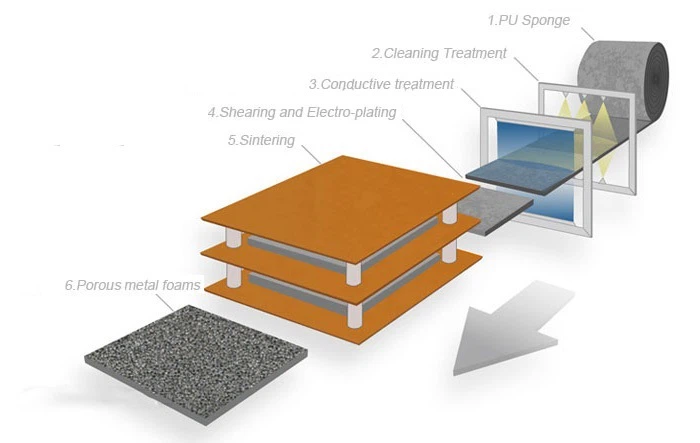

- This material is created through an electrochemical process using high-purity red copper.
- The product offer a large surface area and porosity, making it suitable for a range of applications such as heat sink and heat-absorbing materials, chemical catalyst support, electromagnetic shielding materials, filtration, damping materials, battery electrode materials, and noise reduction.
Main Feature
- The pure copper foam has excellent thermal properties and can be widely used in heat conduction and radiation for motor, electric, and electronic components.
- Its excellent electrical conductivity also makes it a popular choice for nickel-zinc batteries and electrode materials for electrical double layer capacitors, which have gained attention in the industry.
- Due to the structural characteristics of copper foam and its non-toxic properties, copper foam is an excellent material for use in medical and water purification filters.
Product Parameter
| Thickness | 0.1-35mm, can be customized |
| Aperture | 0.1-10mm |
| Porosity | 60-98%, can be customized |
| Through porosity | ≥98%, can be customized |
| Bulk density | 0.1-3.0g/cm³, can be customized |

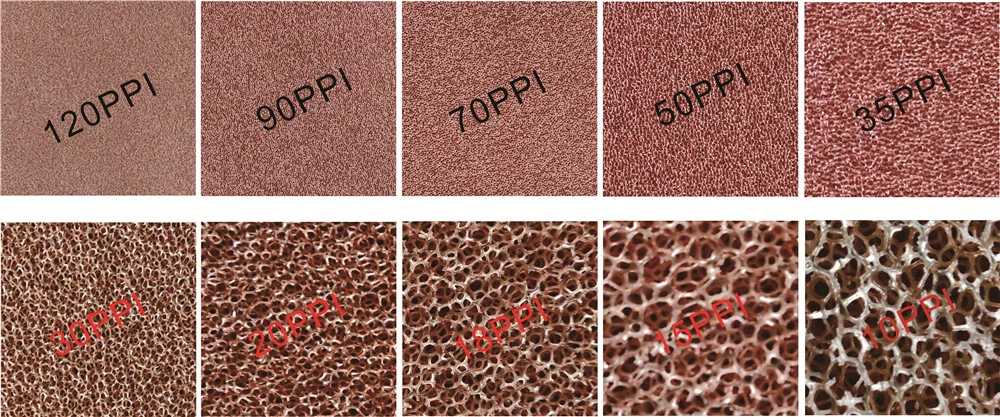

| PPI (number of holes per inch) | 5-130 |
| Maximum geometric size | length*width*thickness: 1000mm*500MM* (1-35MM) |
| Component Content | ||||||
| Element | Cu | Ni | Fe | S | C | Si |
| Guideline(ppm) | Balance | 0.5~5% | ≤100 | ≤80 | ≤100 | ≤50 |

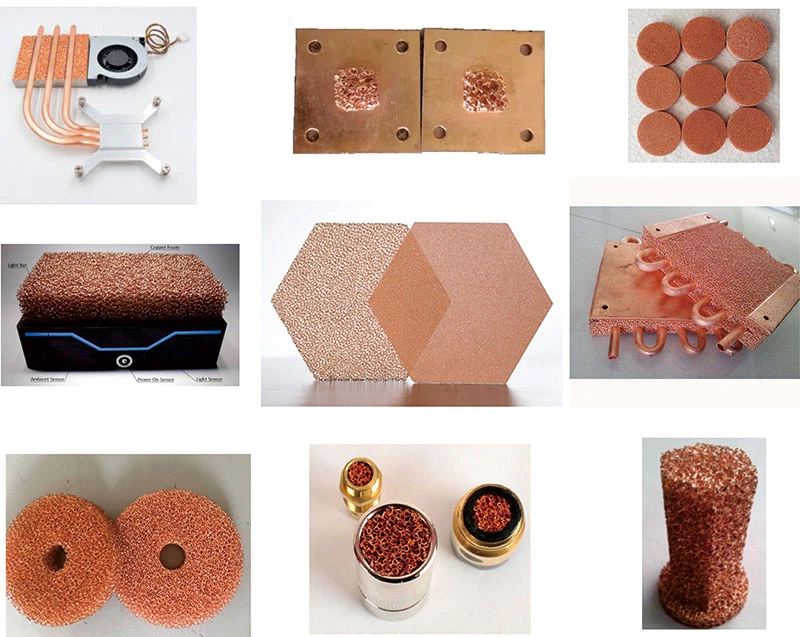

Product Application
Thermal Conductive Materials
3D Copper foam is an excellent fire protection material due to its exceptional thermal conductivity. It has been widely used in advanced firefighting equipment, particularly as a flame barrier. Additionally, it is highly effective in heat dissipation materials for motors and electrical appliances.
Sound absorption and shielding materials
The sound wave is reflected diffusely on the surface of copper foam, achieving sound absorption through principles such as expansion and attenuation, and micro-hole attenuation. Copper has shielding performance similar to that of other excellent electromagnetic shielding materials.
3D Copper foam products have excellent structural properties and are harmless to the human body, making them ideal for medical filter materials. Additionally, copper foam is effective in water purification.
Fluid pressure buffering material
The 3D copper foam disperses and buffers the fluid, making it an excellent pressure-reducing protection for various pressure gauges.
Be Used In A Wide Range Of Industries.
